Description

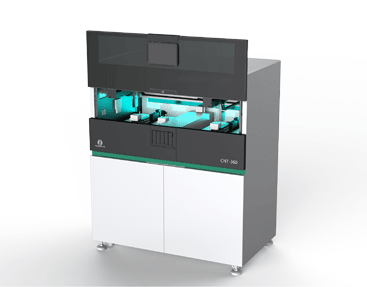

The one-stop solution for complete IHC&ISH workflow. CNT 360 full-automatic IHC&ISH stainer is a powerhouse that performs multiple immunostaining protocols in a single platform, with outstanding fast turnaround time and high-throughput. Ready-to-use reagent kits and protocols are also supplied to ensure optimal staining results.
-
CNT360-M1 Robot design
M1: 2 main robot arms, 4 bulk liquid trains
-
Temperature control
The reagent chamber is maintained between 14~ 18Cº
The slide chamber is maintained between 25 ~ 30º for incubation, slides can be heated up to 100º for antigen retrieval
-
Dispense volume
Dispense volume can be adjusted between 100ul, 120ul, or 150ul for optimal staining results.
-
Reagent container capacity: 7ml and 30ml
-
Number of reagent container spots 70 for M1
-
Bulk liquid container
4L X 6
Waste containers
Non-hazardous, 4L X 3
harzardous, 4L X 1
-
Slide Capacity
M1: 4 trays, 60 slides
-
Turnaround Time : 2.5hrs
-
Touch pads for daily operations, Detachable, remote control allowed
-
Slide incubation chamber,
15 slides per tray,
4 trays per device,
60 slides per run
-
Bulk liquid containers, 4L capacity, easily detachable
-
2 main robot arms for streamlined workflow
Bulk liquid trains on each slide tray,
greatly reduce turnaround time
-
Motor-driven reagent chamber
70 reagent containers distributed among 5 motor driven reagent trays can separately slide out with one screen-touch.
-
Instrument Features
Full-automatic
Baking, deparaffinization, antigen retrieval, blocking, detection, counterstain, for IHC, Multiplex IHC and ISH applications.
Intuitive software interface
Visual monitoring of reagent volume, running time, fault message.
Waste Separation
Non-toxic deparaffiniation solution. Separate waste containers for hazardous waste (DAB waste) and non-hazardous waste. Help labs save both time and money spent on waste disposal.
Temperature Control
Constant temperature control for both slide chamber and reagent chamber
Flexibility in slides and reagent placement
Allow loading and unloading of reagent and slides during protocol runs
Allow multiple protocols to run simultaneously
Multifunctional
Support IHC、 ISH、mIHC、ICC protocols
High-throughput
M1: 60 slides per run
Fast turnaround time
2.5 hrs turnaround time, powered by robotic arms and bulk liquid trains,
Intuitive
Detachable touch-pads with remote control capability
Product Parameters
- Environmental requirements
Operating temperature
5Cº ~ 35Cº (41F ~ 95F)
- Maximum heating energy output
2800VA
- Dimensions (L x W x H)：1370mm x 820mm x 1600mm
- Weight： 400KG (M1)
- Electrical parameters
Voltage and Mains frequency
AC 110V/60Hz or AC 220V/50Hz
Power consumption
2800VA
